Piston Pumps, Piston Motors, Gear Pumps, Gear Motors, Valves

Bondioli & Pavesi is based in Italy and is a global manufacturer of piston pumps, piston motors, gear pumps, gear motors, valves and additional products suited for mobile applications. They offer units in smaller displacements than many suppliers to provide compact and cost-effective designs. Their Bywire Modular Valves offer design flexibility with a wide range of circuits.

a blue and white logo for bondioli & pavesi

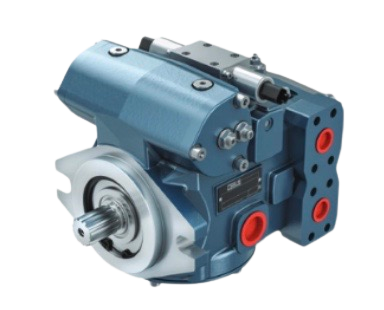

a close up of a hydraulic pump on a white background .

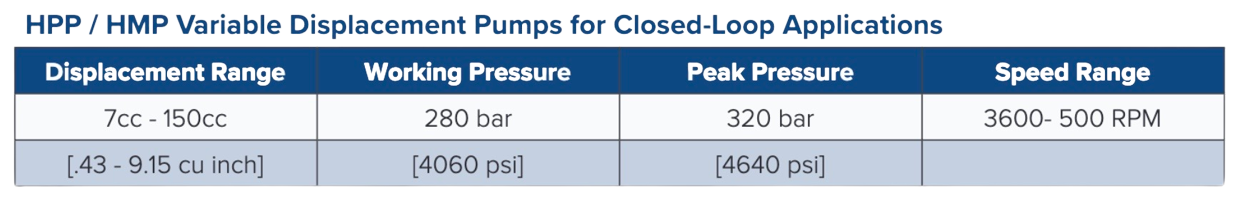

a table of hpp / hmp variable displacement pumps for closed loop applications

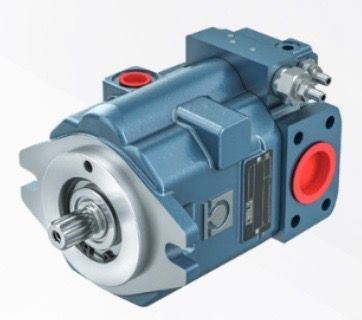

a close up of a hydraulic pump on a white background .

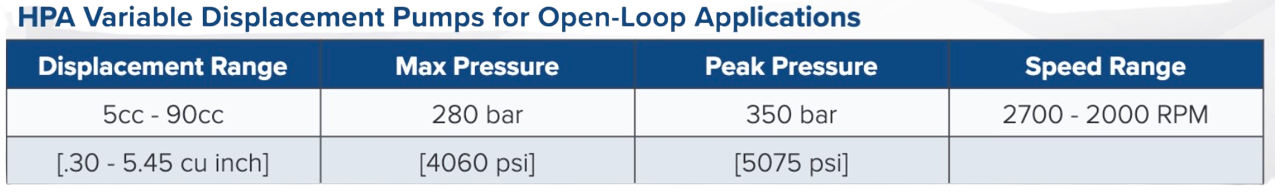

a table of hpa variable displacement pumps for open loop applications

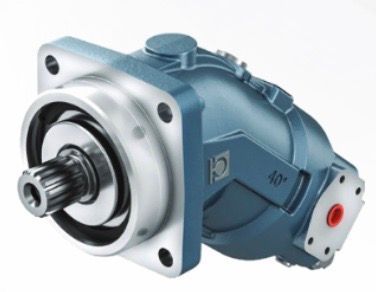

a close up of a hydraulic pump on a white background .

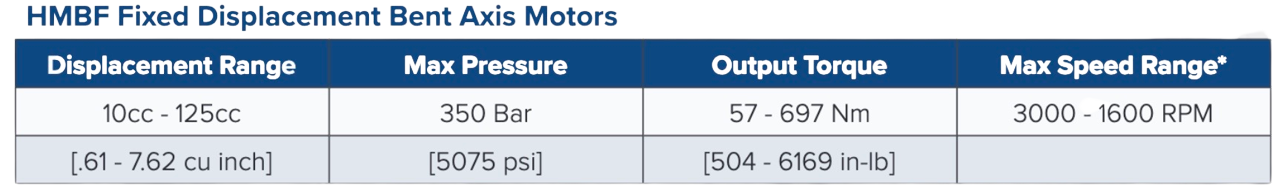

a table showing the displacement range max pressure output torque and max speed range of hmbf fixed displacement bent axis motors

*Max speeds are respective to displacement range. Larger displacements run at lower speed.

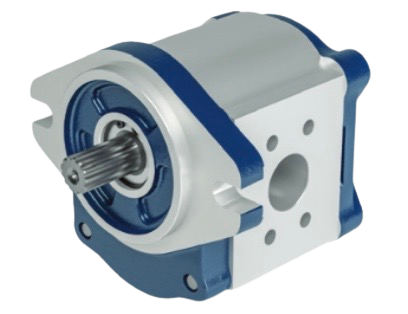

a close up of a blue and white hydraulic pump on a white background .

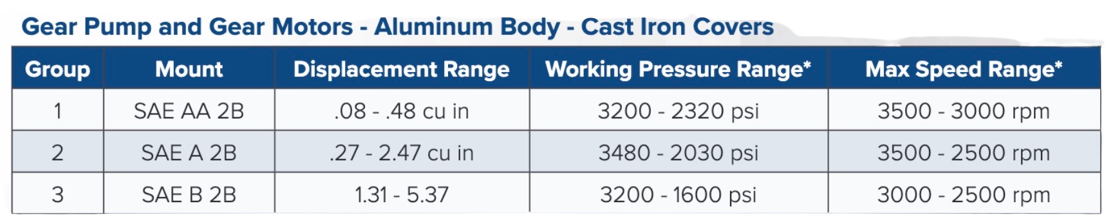

a table of gear pump and gear motors aluminum body cast iron covers

*Max pressure and Max speed are respective to each displacement range. Larger displacements are rated at lower pressures and speeds than smaller displacements

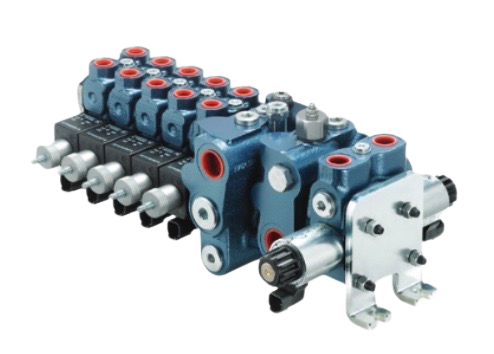

several valves are lined up on a white surface

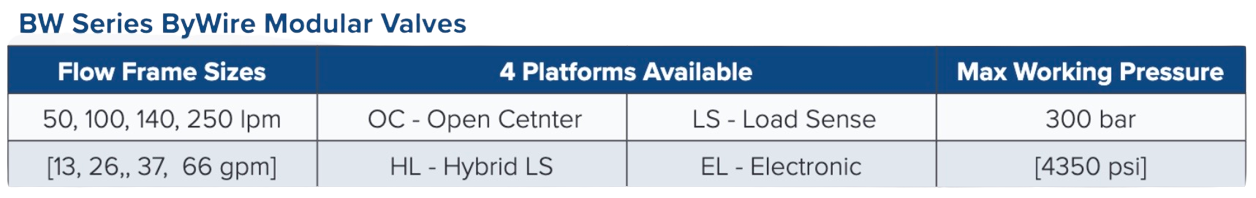

a table of bw series by wire modular valves flow frame sizes and max working pressure

The ByWire modular system has 4 frame sizes that can be configured to provide a wide variety of functions. Each section can be individual customized for hydraulic or electric actuation. Elements can be pre-compensated or flow sharing type suitable for a fixed or variable pump.
